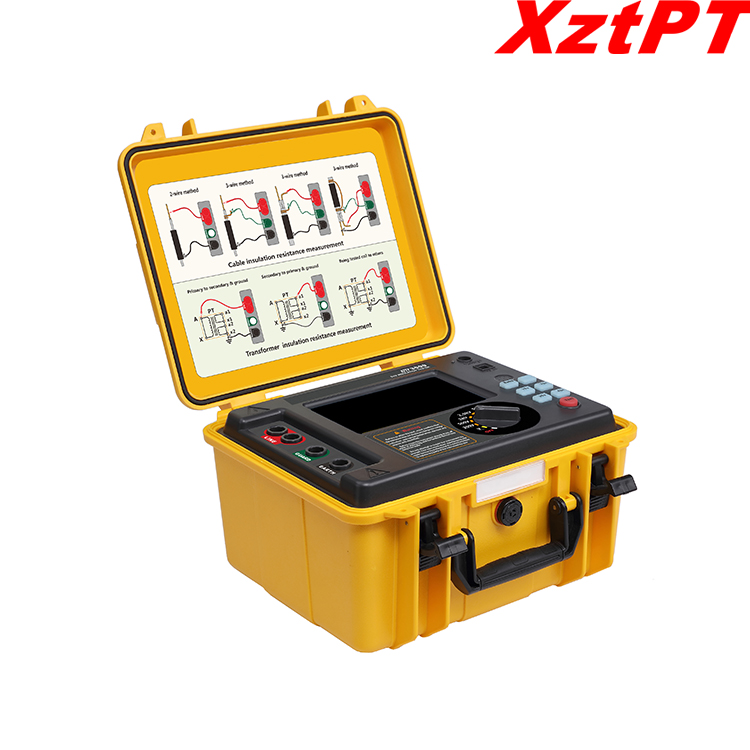

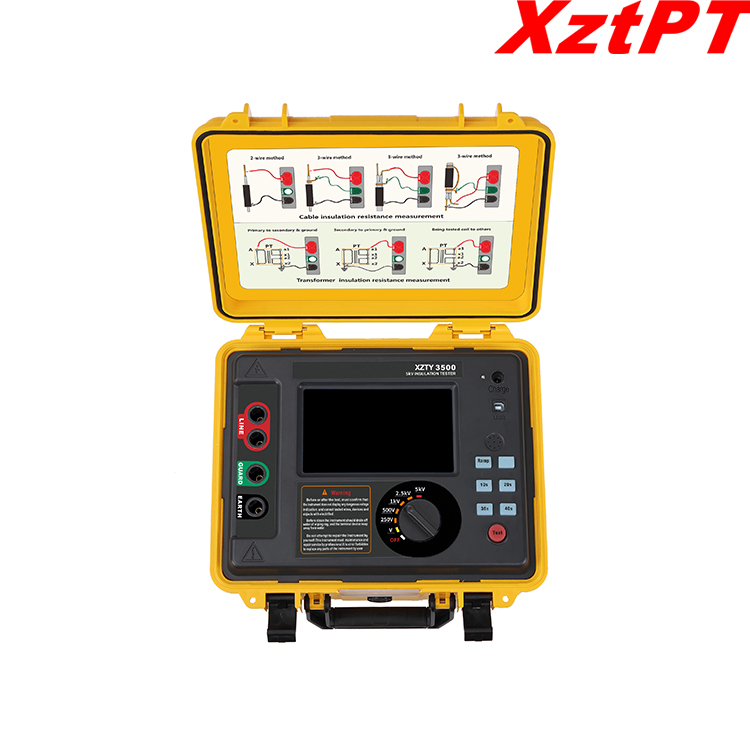

Power Supply

Rechargeable lithium battery 5.2Ah 14.8V

Rated Voltage

XZTY3500：250V，500V，1KV，2.5kV，5kV

XZTY3500B：250V，500V，1kV，2.5kV，5kV，10kV

Output Voltage Accuracy

（5%～10%）±10V

Insulation Resistance Test Range

XZTY3500：0.50MΩ～2.00TΩ

XZTY3500B：0.50MΩ～5.00TΩ

 Short Circuit Current

5mA MAX

Polarization Index Test

YES

Dielectric Absorption Ratio Test

YES

Ramp Test Mode

Step up to the preset voltage by testing with 10% stepped size of the preset voltage.

Filtered Resistance Test Mode

10S、20S、30S、40S four selections

Voltage Test

Range：AC/DC:0V～1000V；Accuracy: ±5%rdg±3V

Current Test

Range：0.01nA～5mA；Accuracy: ±5%rdg±0.5nA

Voltage Monitor

Monitor the voltage of the measured object, and monitor discharge status after test, forbidden to test when voltage exceed 36V, protect instrument and operator.

Test Timer

Automatic record test time, time range: 0s~9999s

Storage Function

Automatically store the test data with test date and time, total of 1000 groups

Upload Function

Upload the stored data to computer via USB communication cable.

Battery Power Display

With battery power display, when battery voltage low will remind to replace the battery

Automatic Shutdown

After 15 minutes start up will shut down automatically without any operation

Meter Dimension

280mm×260mm×160mm

Meter Weight

6.4kg (include the battery)

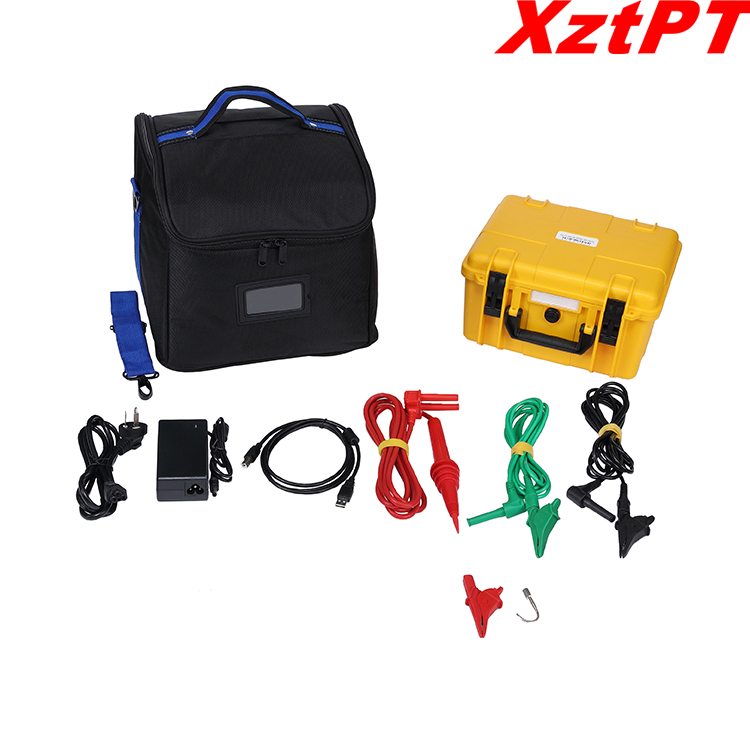

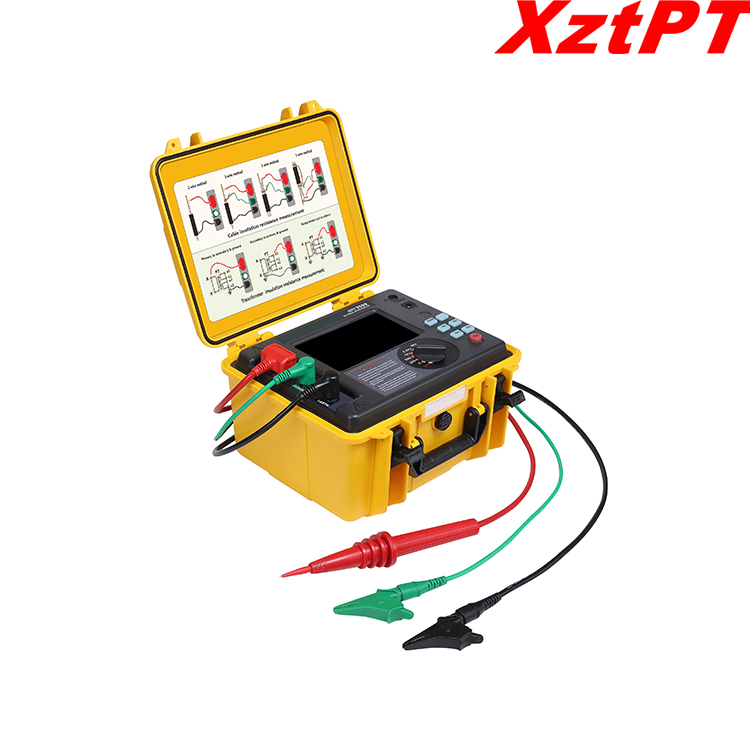

Test Wires

Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS

Protection Level

Close the case IP65, open the case IP40

Working Environment

-20℃～50℃；80%rh

Store Environment

-25℃～65℃；80%rh

Insulation Resistance

50MΩ（1000v）（between the test circuit and shell）

Withstand Voltage

AC 3kV 50Hz 1min（between the test circuit and shell）

Suitable Safety Standard

IEC61010-1，IEC61326-1
