Power Supply

DC6V Alkaline Dry Battery (1.5V AAA X4pcs)

Test Mode

Clamp CT

Transmission Mode

433MHz wireless transmission, distance about 100m

Display Mode

4 digital LCD display, backlight function, suitable for dark place.

LCD Dimension

47mm×28.5mm

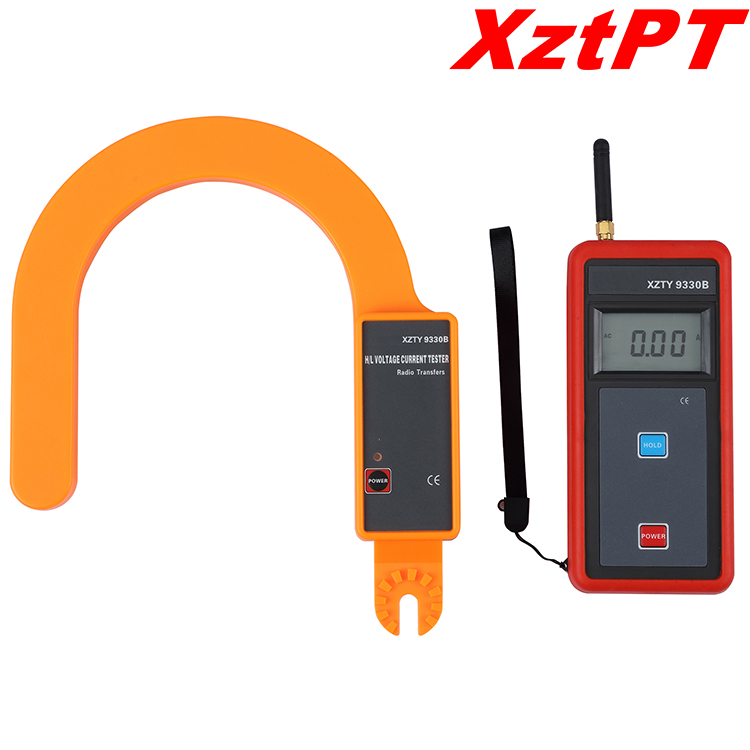

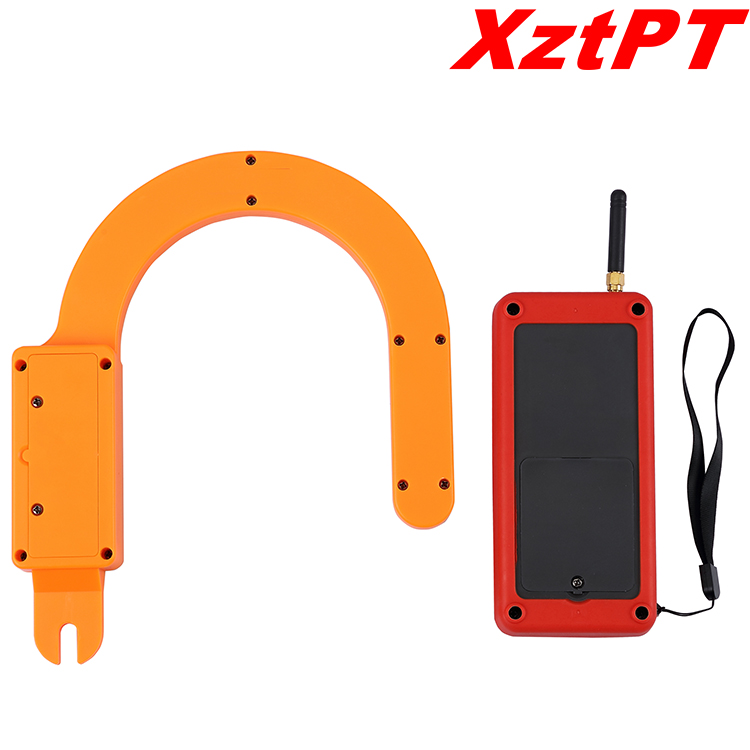

Meter Dimension

Detector: 210mm×246mm×45mm;                      Receiver: 78mm×165mm×42mm

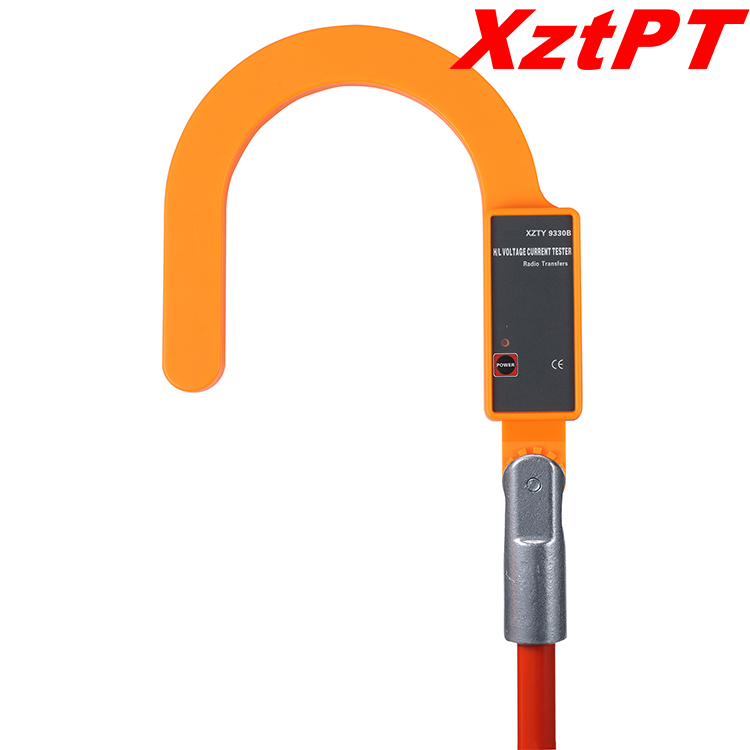

CT Size

Φ128mm

Sampling Rate

2 times/second

Measure Range

0.00A ~9999A（50/60Hz Auto Identification）

Resolution

0.01A

Shift

0.00A ~9999A Automatic Shift

Test Accuracy

±2%rdg±5dgt(The wire is located near the center of the bottom of the u-type clamp, 23℃±2℃)

Position Error

The measured conductor should be located as close as possible to the center of the top of the hook type clamp, and not close to the top of the u-type clamp. The test error on the top of the u-shaped clamp will increase by about one time or more

Data Storage

99 sets, in storage process “MEM” symbol display, “FULL” symbol flash indicate storage is full

Line Voltage

Below 110kV current test , operate with insulation rods ( below 500kV can be customized ，only for XZTY9000B)

Data Hold

In general test mode, press HOLD key to hold data, “HOLD” symbol display. press HOLD Key once again to cancel this function

Data Access

“MR” symbol display, it can look over all the stored data

Overflow Display

Exceed measurement range overflow function: “OL A” symbol display

No signal Indication

When the receiver has not received transmit signal, dynamic display “no- -”symbol

Auto Shut Down

About 15 minutes after boo up, the meter will shut down automatically without any operation, to decrease the battery consumption.

Battery Voltage

When the battery voltage is lower than 4.8V, the receiver display low battery voltage symbol”    ”(the detector low voltage display “     ” symbol, the receiver low voltage continue display), remind to replace battery

Meter Weight

Detector: About 300g,

Receiver: 280g

Total weight of meter: about 2300g (including insulation rod and battery.)

Working Temperature

-10°C ~40°C; Below 80%Rh

Storage Temperature

-10°C ~60°C; Below 70%Rh

Interference

Should avoid 315Mhz,433Mhz Same frequency signal interference

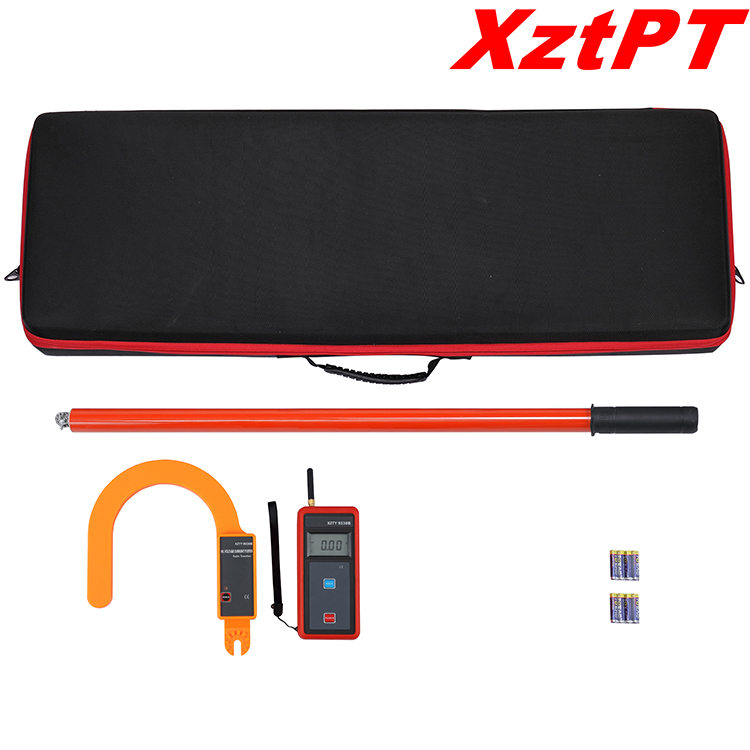

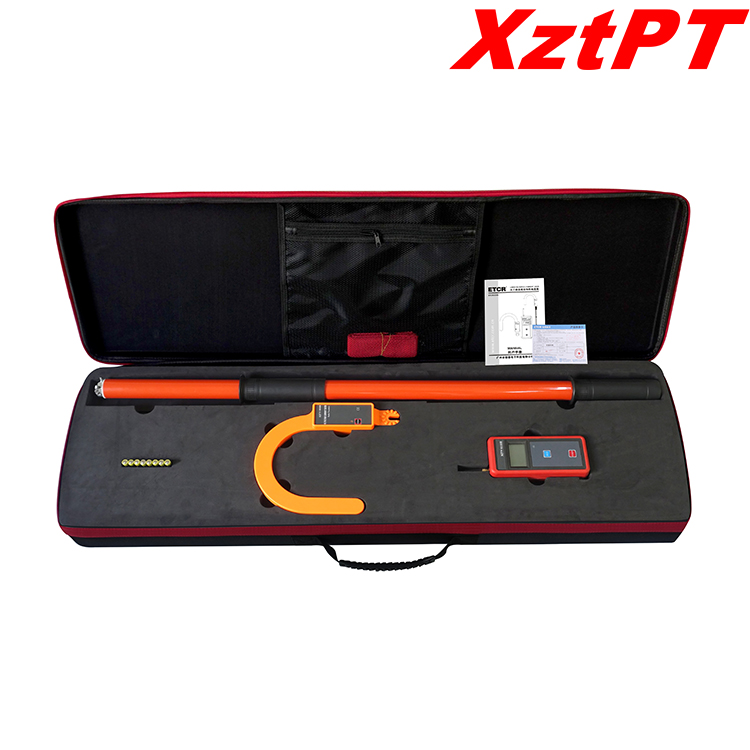

Insulation Rod Dimension

4300mm

Insulation Strength

AC 110kV/rms (The telescopic insulation rod is fully opened between the two ends)

Structure

Anti-Dripping Type II
