I. Introduction

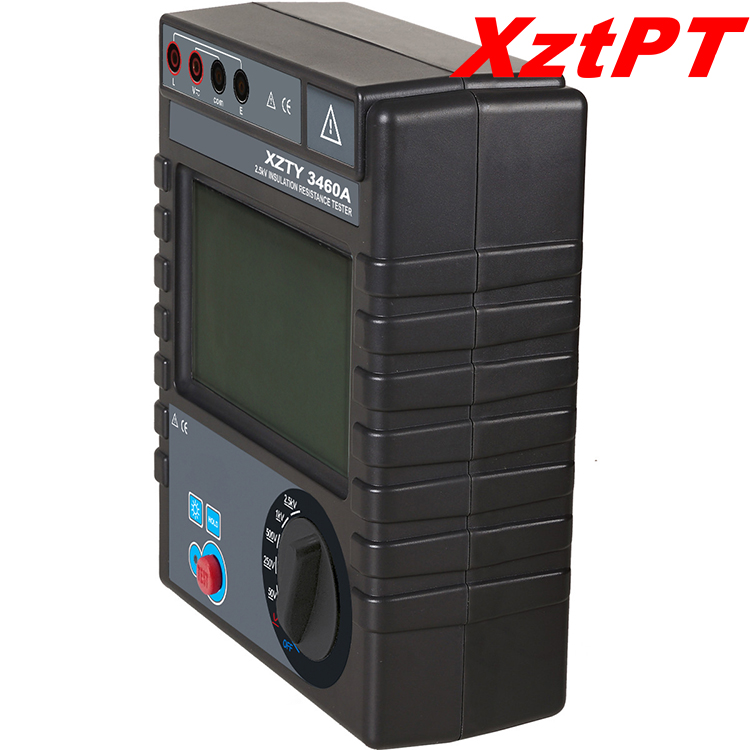

XZTY3460A Insulation Resistance Tester, also known as megohm meter, insulation resistance tester, for insulation resistance testing. This instrument is a high performance digital type instrument, with LCD large screen with backlight display, data hold, automatic discharge, automatic shutdown and other functions. The instrument has the functions of test timing and voltage monitoring. When the loop voltage is higher than 36V, the instrument will forbid tested to protect the safety of the tested objects and personnel. Insulation resistance value, test time, output voltage display with the same screen, also have the functions of measuring AC voltage, DC voltage. This series instrument maximum output voltage 2500V, the biggest test resistance value 200GΩ, maximum short-circuit current 2mA.

XZTY3460A Insulation Resistance Tester complete appliance is beautiful, wide range, high precision, high resolution, easy to operate, convenient to carry, accurate and reliable, stable performance, strong anti-interference ability. And with the shockproof, dustproof, moisture-proof structure, which is the telecommunication, the electric power, the meteorology, the computer room, the oil field, the mechanical and electrical installation and the maintenance and uses the electric power as the industrial power or the energy industry enterprise department commonly used but essential instrument. It is suitable for measuring the resistance of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

II. Model Category

Product Model	Rated Voltage	Insulation Resistance Range	Voltage Range
XZTY3460	2500V	0.1MΩ~200GΩ	0V~750V

III. Range And Accuracy

1.1. The temperature and humidity values that ensure the testing accuracy of insulation resistance

Insulation Resistance Range	The humidity values that ensure the testing accuracy of insulation resistance	The temperature values that ensure the testing accuracy of insulation resistance
1MΩ-100MΩ	<85% RH	23℃±5℃
101MΩ-20GΩ	<75% RH
21GΩ-400GΩ	<65% RH

1.2. Range and Accuracy

Measure Function	Output Voltage	Measure Range（Ω）	Accuracy	Resolution
Insulation Resistance	50V	0.10M～5M	±3%rdg±5dgt	0.01M
		1M～1G	±5%rdg±5dgt	0.1M
		1G～4G	±10%rdg±5dgt	0.1G
	250V	0.50M～1M	±3%rdg±5dgt	0.01M
		1M～1G	±5%rdg±5dgt	0.1M
		1G～20G	±10%rdg±5dgt	0.1G
	500V	1M～1G	±5%rdg±5dgt	0.1M
	500V	1G～40G	±10%rdg±5dgt	0.1G
	1000V	2M～1G	±5%rdg±5dgt	0.1M
	1000V	1G～80G	±10%rdg±5dgt	0.1G
	2500V	10M～1G	±5%rdg±5dgt	0.1M
		1G～100G	±10%rdg±10dgt	0.1G
		100G～200G	±10%rdg±10dgt	1G
AC Voltage	AC/DC： 0.0V～750V		±5%rdg±5dgt	0.1V

Note: Conversion of common electrical units

1 TΩ（Tera ohm）=1000GΩ=10¹²Ω

1 GΩ（Giga ohm）=1000MΩ=10⁹Ω

1 MΩ（Mega ohm）=1000KΩ=10⁶Ω

IV. Technical Specification

Function	insulation resistance test, AC/DC voltage test

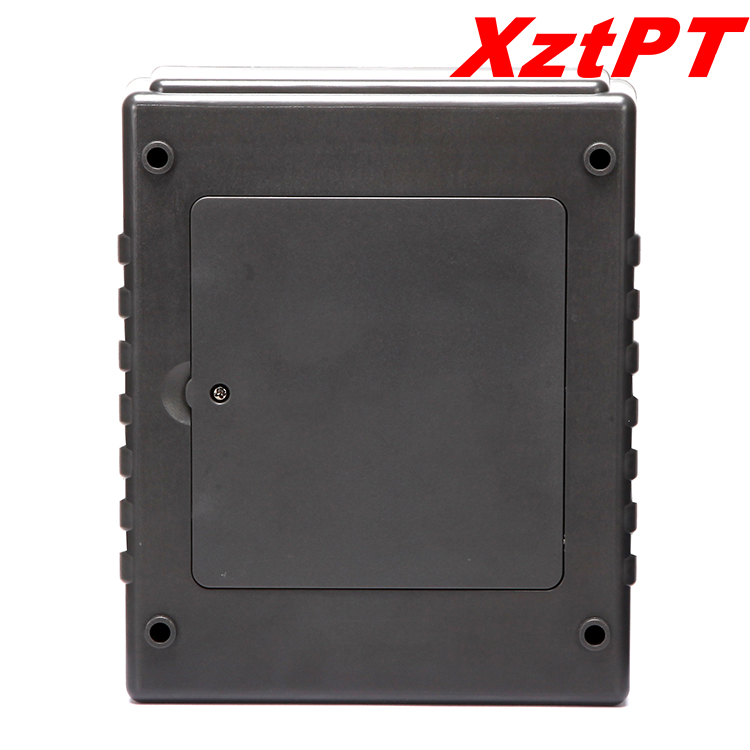

Power Supply	DC 1.5V LR14X6PCS dry battery continues stand by above 100h
Rated Voltage	50V;250V;500V;1000V;2500V
Output Voltage Accuracy	(5%～10%)±10V
Insulation Resistance Range	0.1MΩ～200GΩ
Voltage Range	AC/DC 0V～750V
Short Circuit Current	2mA MAX
Max Capacitive Load	1uF
Shift	Turn the shift rotary knob to select the appropriate gear
Backlight	Controllable off-white backlight, suitable for dark places
Display Mode	4 digital LCD display, contrast clear
Measurement indication	LED flicker and buzzer ring in measurement
LCD Size	108mm×65mm
Meter Dimension	212mm×175mm×76mm

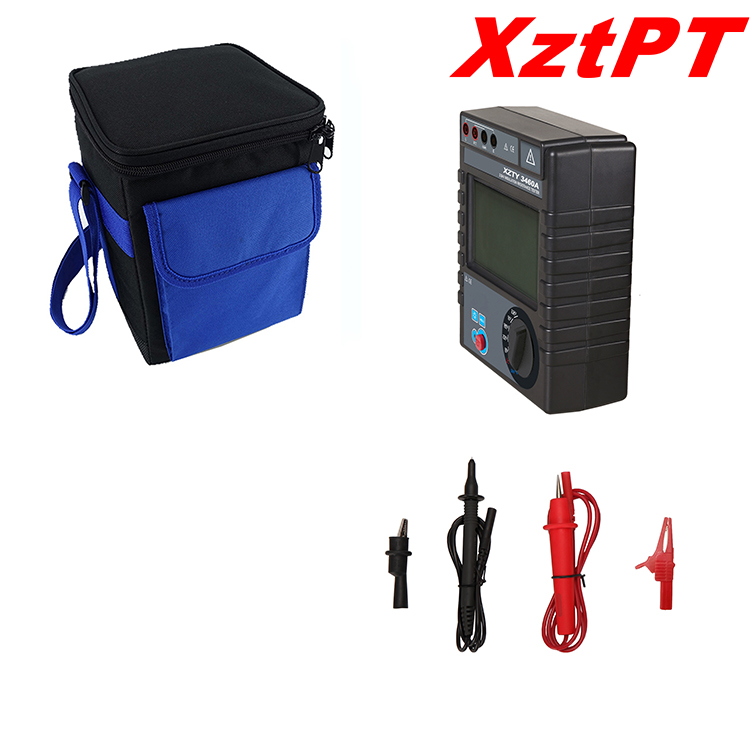

Test Wires	High voltage bar test wire： Red 1PCS； Probe test wire： Black 1PCS；Alligator clip test wire：1PCS；Alligator clip：1PCS
Test Time	The single test time is 10 min. During the test, the user can stop automatically or automatically stop after 10 min, and the screen display measurement data
Battery Voltage	Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time
Automatic Discharge	Automatic release the voltage of the measured object, During discharging, symbol flash. Discharge completion symbol extinguish
Auto Shutdown	15 minutes after boot up, the meter shuts down automatically without any operation
Power Consumption	Standby: about 40mA (backlight off) ； Measurement：about 100mA (backlight off)
Weight	1230g
Working Temperature and Humidity	-10℃～40℃；below 80%rh
Storage Temperature and Humidity	-20℃～60℃；below 70%rh
Suitable Safety Standard	IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、Pollution 2)
