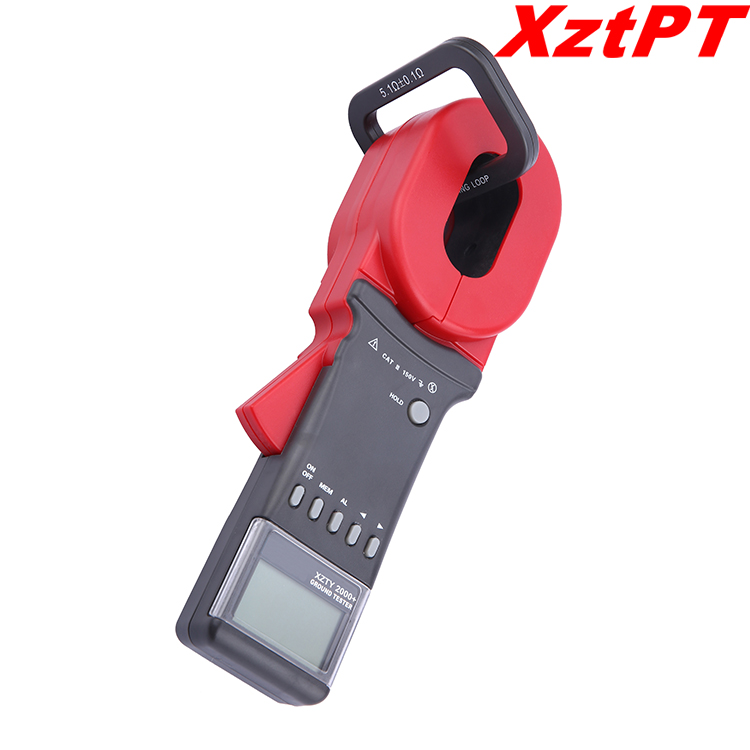

XZTY2000+ Earth Resistance Tester
Product Details
1.Model of Series
Model | Jaw Size (mm) | Range of Resistance (Ω) | Range of Current (A) | Storage Function | Alarm Function |
XZTY2000+ | 65×32 | 0.01--1200 | -- | 99 Units | √ |
XZTY2000A+ | 65×32 | 0.01--200 | -- | 99 Units | √ |
XZTY2000C+ | 65×32 | 0.01--1200 | 0.0--20.0 | 99 Units | √ |
XZTY2100+ | φ32 | 0.01--1200 | -- | 99 Units | √ |
XZTY2100A+ | φ32 | 0.01--200 | -- | 99 Units | √ |
XZTY2100C+ | φ32 | 0.01--1200 | 0.0--20.0 | 99 Units | √ |
Note: “√” means available.
2. Ranges and Accuracy of Measurement
Mode | Range | Resolution | Accuracy |
Resistance | 0.010Ω-0.099Ω | 0.001Ω | ±（1%＋0.01Ω） |
0.10Ω-0.99Ω | 0.01Ω | ±（1%＋0.01Ω） | |
1.0Ω-49.9Ω | 0.1Ω | ±（1%＋0.1Ω） | |
50.0Ω-99.5Ω | 0.5Ω | ±（1.5%＋0.5Ω） | |
100Ω-199Ω | 1Ω | ±（2%＋1Ω） | |
200Ω-395Ω | 5Ω | ±（5%＋5Ω） | |
400-590Ω | 10Ω | ±（10%＋10Ω） | |
600Ω-880Ω | 20Ω | ±（20%＋20Ω） | |
900Ω-1200Ω | 30Ω | ±（25%＋30Ω） | |
*Current (True-RMS) | 0.00mA -9.00mA | 0.05mA | ±（2.5%＋2mA） |
10.0mA -99.0mA | 0.1mA | ±（2.5%＋10mA） | |
100mA -300mA | 1mA | ±（2.5%＋20mA） | |
0.30A-2.99A | 0.01A | ±（2.5%＋0.1A） | |
3.0A-9.9A | 0.1A | ±（2.5%＋0.5A） | |
10.0A-20.0A | 0.1 A | ±（2.5%＋1 A） |
Resistance Measurement Frequency: >1KHz
Measured Current Frequency: 50Hz/60Hz
Setting Range of Resistance Alarm Critical Value: 1Ω-199Ω
*Setting Range of Current Alarm Critical Value：1mA -499mA
Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
Insulation: double insulation
Pollution degree: class II
Overvoltage category: CAT III 150V to ground, Max 20A
Degrees of protection:
-IP30, Group III equipment as per EN 60529 Ed 92
-IK04, as per EN 50102 Ed 95
Dimensions(L×W×H):

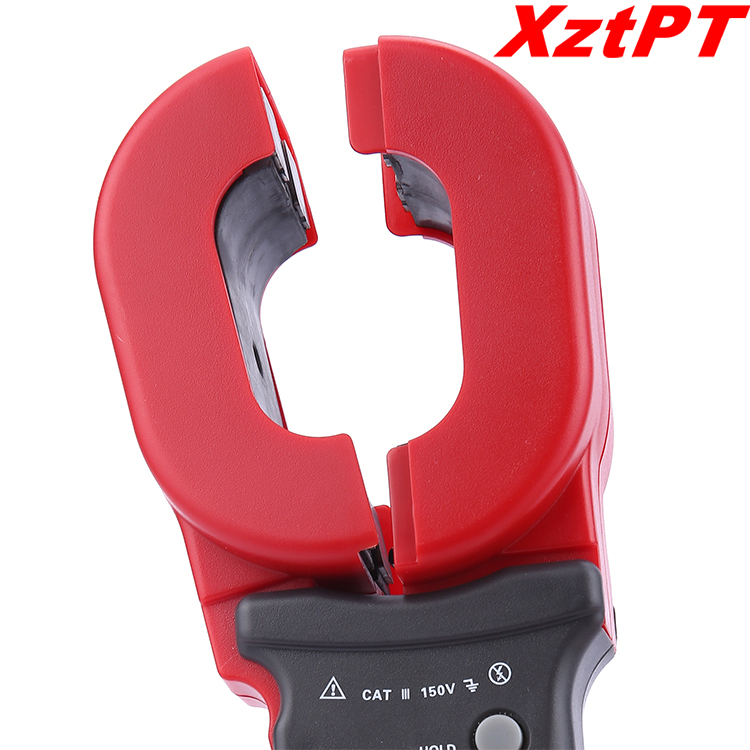

-Long elliptic jaw: 285mm×90mm×66mm; (11×4×3 inches)
-Round jaw: 260mm×90mm×66mm;(10×4×3 inches)
Span of Jaw: Long elliptic jaw 35mm; round jaw 32mm
Weight (including batteries): Long elliptic jaw-1160g, Round jaw-1120g
Battery type: 4 ×1.5V alkaline LR6 AA battery
Low battery indication: is displayed
Internal consumption: <50mA
Auto Power off: after 5 minutes of idleness
Display: 4 LCD, sign, decimal point and backlight
Memory size: 99 Units of Reading
Environment (Temperature & Relative Humidity):
-Working: -10°C~55°C, 10%RH-90%RH
-Storage: -20°C ~60°C, below 70%RH
Range shift: Full range automatic shifting
External magnetic field: <40A/m
External electric field: <1V/m
Data upload interface: RS232 (Optional)
