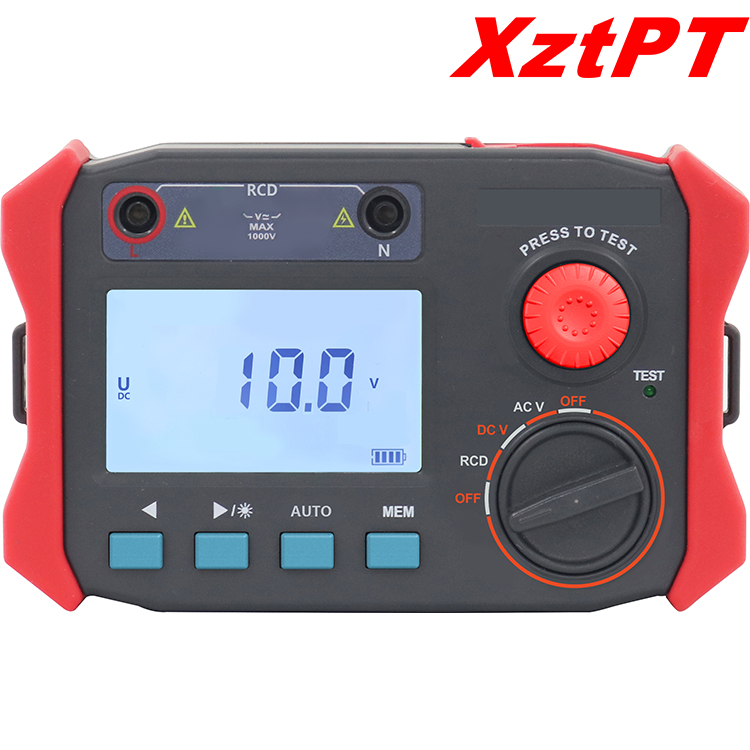

XZTZ9032 Leakage Switch Tester
Product Details
XZTZ9032 Leakage Switch Tester, also known as Leakage Switch Detector, Leakage Protector Tester, Residual Current Action Protector Detector, Residual Current Action Protector Tester, is an essential testing instrument for engineering quality supervision stations and construction companies. Measure the action time and action current of the leakage switch. It is mainly used to test the leakage action current, leakage non-operation current and leakage action time of the leakage protector. It can be widely used in power supply departments, agricultural power departments, leakage protector manufacturers, labor safety inspection departments in construction, mining, machine tool and other industries, as well as electricians.
· XZTZ9032 leakage switch tester is composed of host, test line, etc. Simple and portable, 4-digit super large LCD display, gray and white screen display, clear at a glance, easy to operate and use. Large-capacity storage of 500 sets of data, Ac voltage measurement range:1.0V ~ 750V, Dc voltage measurement range:1.0V ~ 1000V, measurement accuracy: ±5%dgt±5dgt. The test leakage current is from 15 to 500mA, which is divided into ten gears (15; 30; 50; 75; 100; 150; 200; 250; 300; 500mA), and the test leakage current action time range is 0 to 999mS.
current gear | 15,30,50,75,100,150,200,250,300,500mA | measurement accuracy: ±10%dgt±2dgt | resolution ratio: 1mA |
leakage current action time | Action time: 0～999mS | measurement accuracy: ±4%dgt±6dgt | resolution ratio: 1mS |
voltage measurement | AC: 1.0～750V | measurement accuracy: ±5%dgt±5dgt | |
DC: 1.0～1000V | measurement accuracy: ±5%dgt±5dgt | resolution ratio: 0.1V |
Function | Leakage protector action time measurement, leakage protector action current measurement, voltage measurement. |
DC voltage range | 1.0～1000V |
DC voltage resolution | 0.1V |
AC voltage range | 1.0～750V |
AC voltage resolution | 0.1V |
Leakage current gear | 15 , 30 , 50, 75, 100, 150, 200, 250, 300, 500 mA |
Leakage action time | 0～999 mS |
Test mode | Manual (nt) or automatic (At) |
Power supply | 8 1.5V (AA) alkaline batteries |
Back light | Controllable gray and white screen backlight, suitable for use in dark places |
Auto off | Instrument shut down after 15 minutes without operation |
Display mode | 4-digit super large LCD display, gray and white screen backlight |
LCD display size | 73mm×43mm |
Meter size | 175mm (length)×112mm (width)×53mm (high) |
Test line | Test line red 1 meter, black 1 meter |
Data storage | 500 groups, flashing "FULL" symbol means storage is full |
Data review | Data query function: "MEM" symbol display |
Power consumption | Standby: 53mA Max (backlight off) |
Power on backlight: 75mA Max | |
Measurement: 108mA Max (backlight on) | |
Battery voltage | The battery voltage is low, and the low battery symbol is displayed“ ” |
Quality | 1230g(battery included) |
Operating Temperature and Humidity | －10℃～+50℃＜85%RH |
Storage Temperature and Humidity | －15℃～+55℃＜90%RH |
Suitable for safety regulations | IEC61010-1 CAT Ⅲ 600V，IEC61010-031，IEC61326，Pollution Degree 2 |
