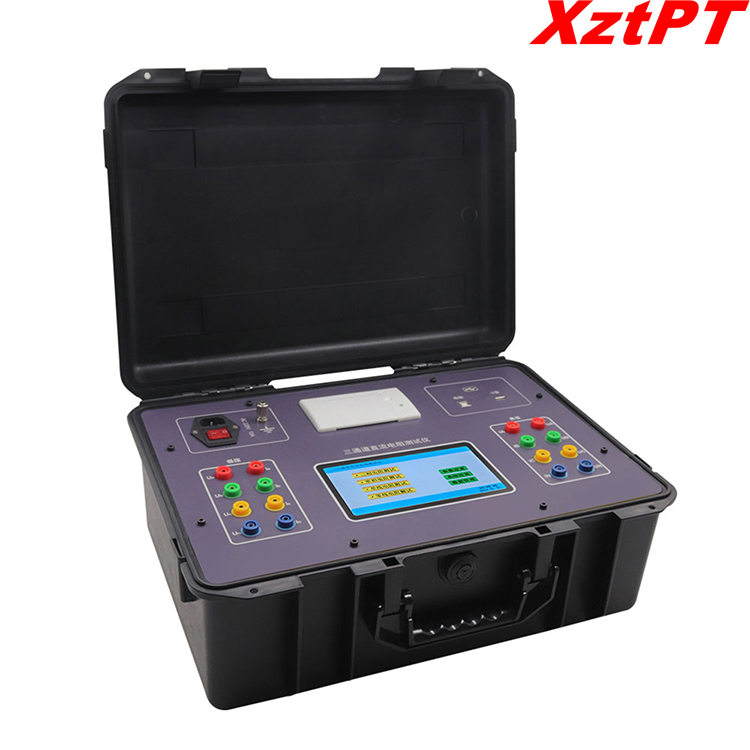

DC Resistance

0.0001mΩ~5000Ω Accuracy: ±0.2%FS±5dgt  Minimum resolution: 0.001mΩ

Output current display

0.01mA~20.000A

Conversion resistance

The winding material and measured temperature can be converted

Three-phase unbalance rate

Automatically display the unbalance ratio of three-phase windings.

Tap position

The tap position can be set manually in the settings interface.

Rated measuring power

1000W

Power supply

AC 220V 10A (50Hz)

Backlight

Adjustable backlight brightness

Measurement method

Four-wire test

Magnetic aid test

High and low voltage output current, test the resistance of low voltage terminal

Short circuit test current

0.2A, 0.5A, 2A, 5A, 10A, 20A (6 settings)

Short circuit maximum current

DC 20A±10%

No-load maximum voltage

DC 27V±10%

Display mode

7 inch touch color screen

Touch screen

Yes

Measurement instructions

Measurement progress display, measurement prompt animation display

Meter size

Length, width and height: 540mm×440mm×210mm

Standard test lead length

8

U disk interface

Special interface for connecting U disk

USB interface

Connect to a computer with a USB cable to query and save data

Print

Built-in thermal printer

Paper Specifications

57*40mm

Data storage

500 groups

Data access

Have

Overflow display

Overrange overflow function: "OL" symbol display

Automatic shut-down

none

Power consumption

Standby: <110W

Measurement: 1000W

Quality

Gauge: 27 kg

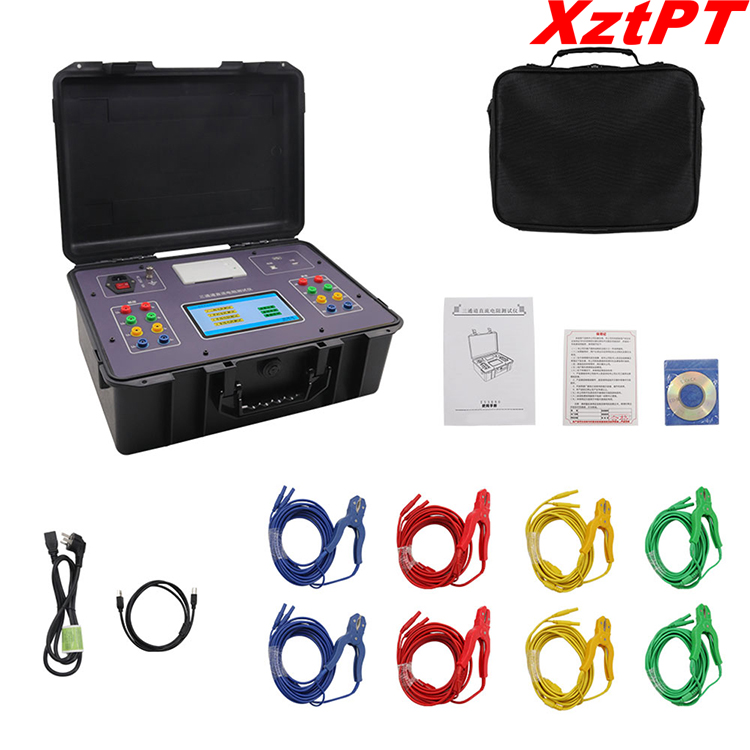

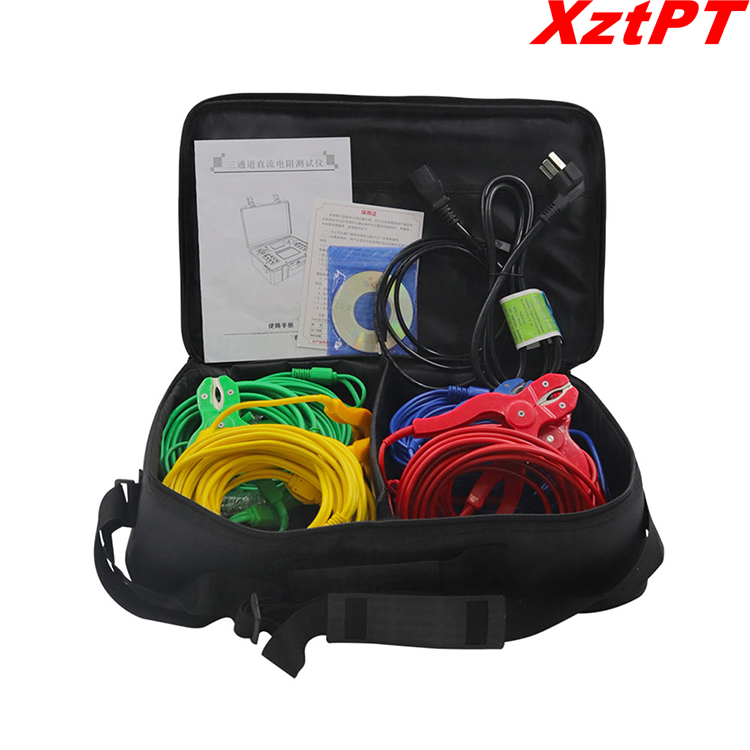

Test lead, auxiliary ground rod, instrument bag: 5.5kg

Working temperature and humidity

-10℃～40℃; below 80%rh

Storage temperature and humidity

-20℃～60℃; below 70%rh

Insulation resistance

10MΩ or more (500V between circuit and case)

Pressure resistance

AC 3700V/rms (between circuit and case)

Suitable for safety regulations

IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
