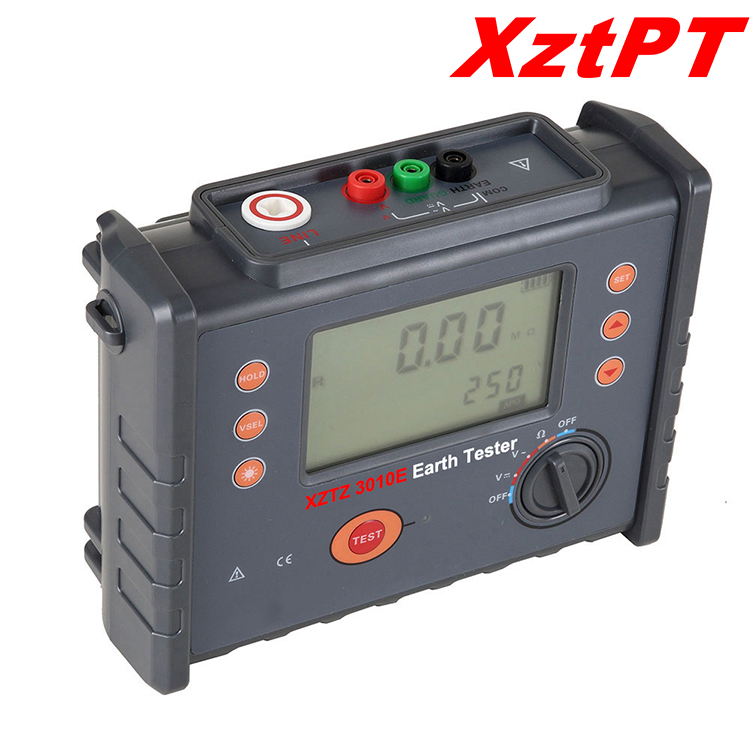

Earth Resistance

(R)

0.00Ω-30.00Ω

±2%rdg±5dgt

0.01Ω

30.0Ω-300.0Ω

±2%rdg±3dgt

0.1Ω

300Ω-3000Ω

±2%rdg±3dgt

1Ω

3.00kΩ-30.00kΩ

±4%rdg±3dgt

10Ω

Soil Resistivity

(ρ)

0.00Ωm-99.99Ωm

ρ=2πaR

(remark 2)

0.01Ωm

100.0Ωm-999.9Ωm

0.1Ωm

1000Ωm-9999Ωm

1Ωm

10.00kΩm-99.99kΩm

10Ωm

100.0kΩm-999.9kΩm

100Ωm

1000kΩm-9999kΩm

1kΩm

Earth Voltage

AC 0.00-600V

±2%rdg±3dgt

0.01V

Ambient temperature and humidity

23℃±5℃，below 75%rh

Power Supply

DC 9V 6-section LR14 Dry Battery Standby for more than 100 hours

Interference voltage

＜20V(should be avoided)

Interference current

<2A (should be avoided)

Measure R electrode spacing

a>5d

Measured electrode spacing

a>20h

Auxiliary Earth Resistance

Reference Conditions <100Ω, Operating Conditions <5kΩ

Range

Grounding resistance: 0.00Ω to 30.00kΩ

Soil resistivity: 0.00Ωm～9999kΩm

Ground voltage: 0.00V to 600.0V

Measurement Method

Precision 4-wire, 3-wire measurement, simple 2-wire grounding resistance

Measuring Methods

Grounding resistance: rated current change method

Soil resistivity: four-pole method

Ground voltage: average rectification (S-ES interface)

Test Frequency

128Hz

Short-circuit Test Current

AC >20mA (sine wave)

Open Circuit Test Voltage

AC 28V max

Electrode Spacing Range

can be set from 1m to 100m

Change Gear

Grounding resistance: fully automatic shifting from 0.00Ω to 30.00kΩ

Soil resistivity: 0.00 Ωm～9000kΩm automatic shifting

Backlight

Gray screen backlight, suitable for dim places

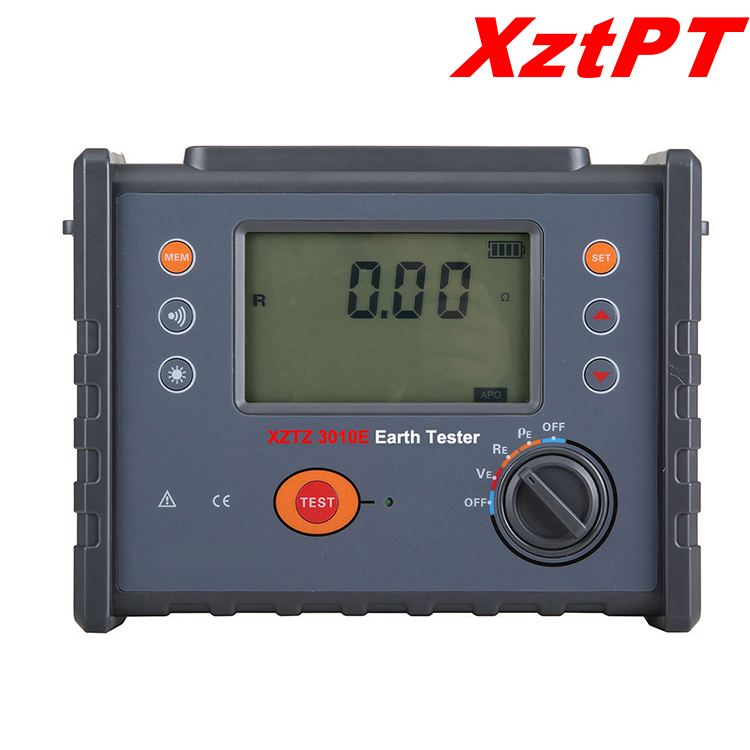

Display Mode

4-digital super-large LCD display, blue screen backlight

Measuring Indicator

During measurement, LED flash

LCD Frame Dimension

111mm×65mm

LCD display area

108mm×65mm

Dimension

L×W×H: 240mm×188mm×85mm

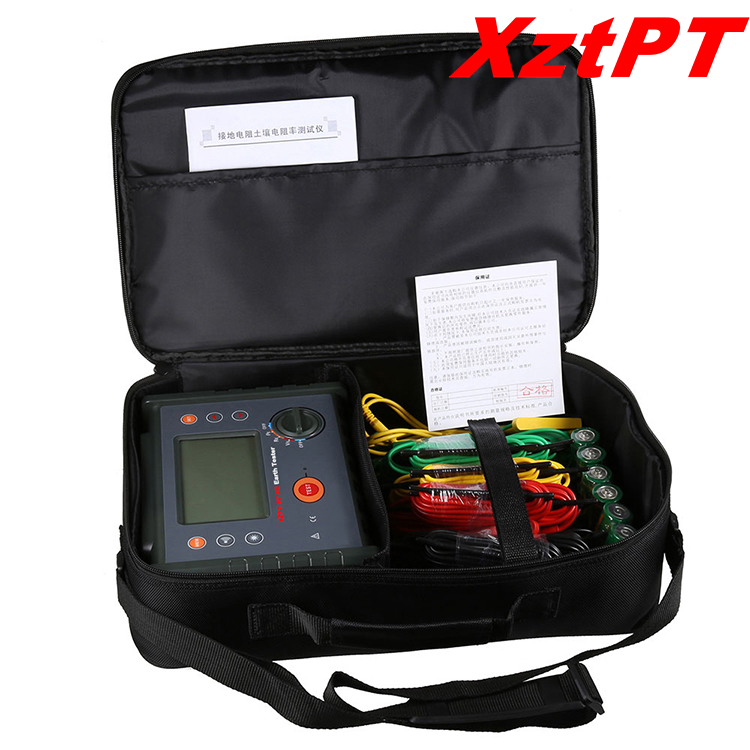

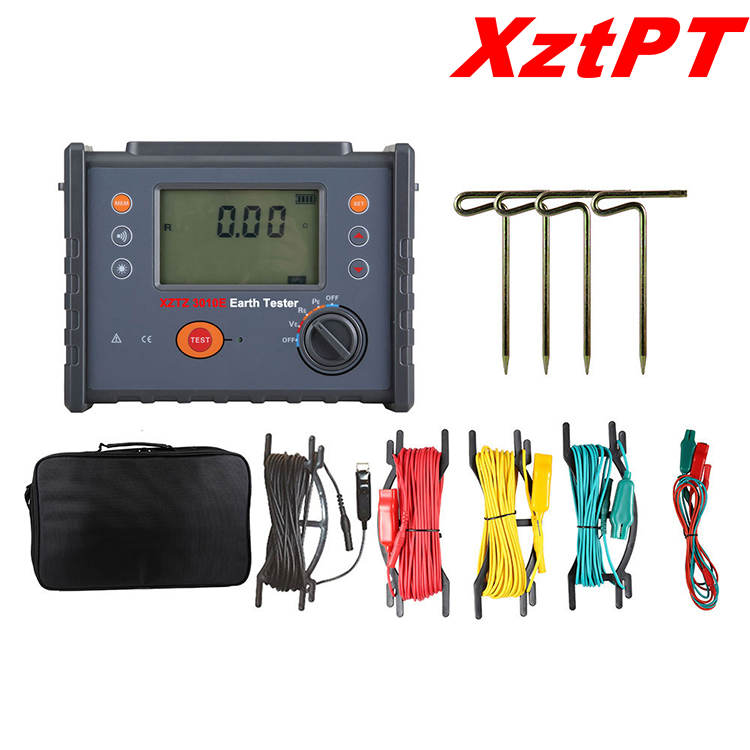

Standard Test Wire

4 wires: each for red 20m, black 20m, yellow 10m, and green 10m

Simple Test Wire

2 wires: each for yellow 1.5m and green 1.5m

Auxiliary Earthing Rod

4 PCS

Measuring Rate

Voltage to ground: about 3 times/second

Earth resistance, soil resistivity: about 7 seconds/time

Circuit Voltage

below AC 600V(The ground voltage measurement function cannot be used to measure commercial power)

Data Storage

500 sets, “MEM” icon storage indicator, flash display “FULL” icon to indicate storage is full

Data Read

Data read function: “MR” icon display

Overflow Display

Exceeding measuring range overflow function: “OL” icon display

Alarm Function

Alarm when the measured value exceeds the alarm setting value

Battery Voltage

Low battery voltage symbol display

Automatic Shut-down

"APO" instruction, automatically shut down after 15 minutes of power on

Power Consumption

Standby: About 40mA (backlight off)

Turn on and backlight on: about 43mA

Measurement: about 75mA (backlight off)

Weight

Tester：1230g (including battery)

Testing Wires：1300g

Auxiliary earthing rod：720g(4 PCS)

Working Temperature & Humidity

-10℃～40℃；below 80%rh

Storage temperature & humidity

-20℃～60℃；below 70%rh

Overload Protection

Measuring earth ground resistance: between each interfaces of H-E、S-ES, AC 280V/3 seconds

Insulation Resistance

Over 20MΩ(between circuit and enclosure it is 500V)

Withstanding Voltage

AC 3700V/rms (Between circuit and enclosure)

Electromagnetic Features

IEC61326(EMC)

Protection Type

IEC61010-1 (CAT III 300V, CAT IV 150V, Pollution Degree 2);

IEC61010-031;

IEC61557-1 (grounding resistance);

IEC61557-5 (soil resistivity);

JJG 366-2004
