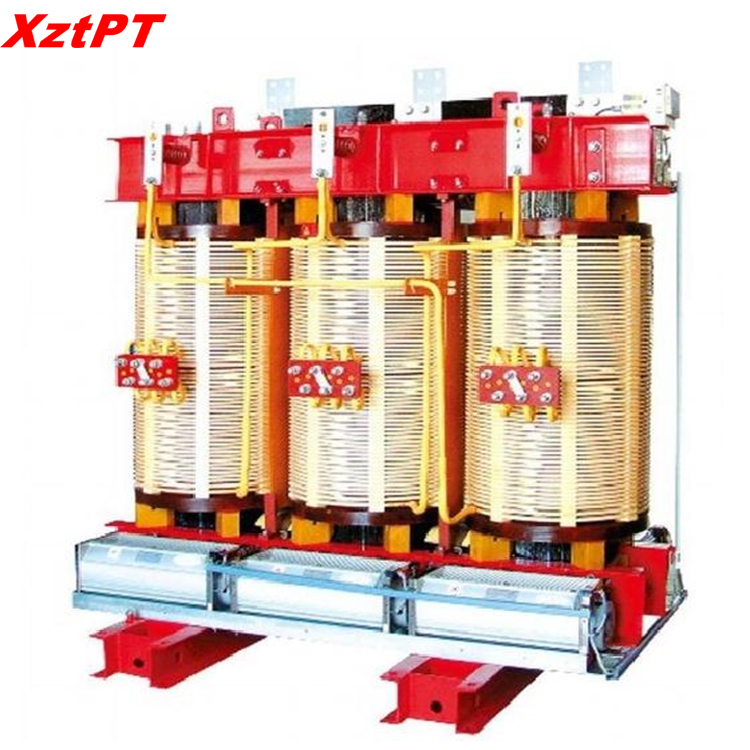

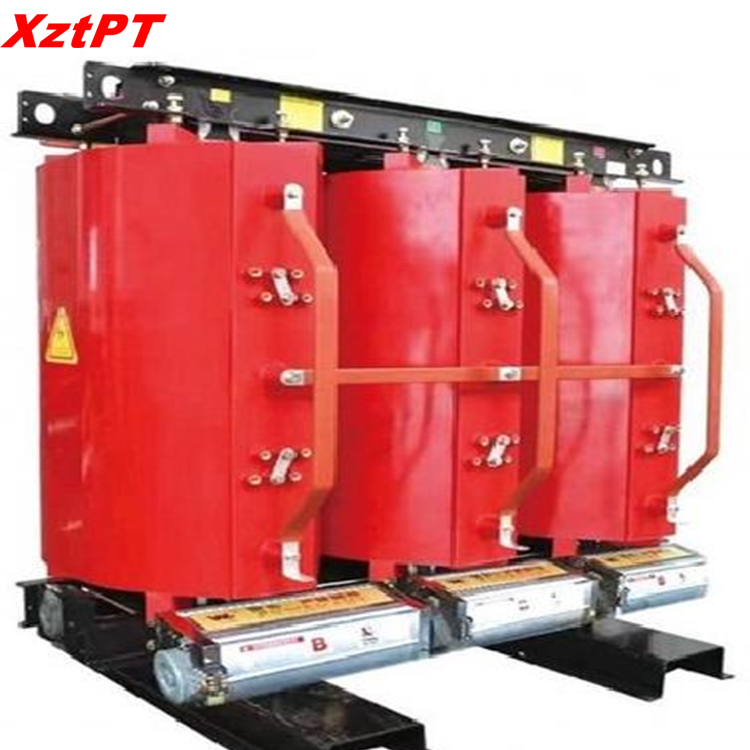

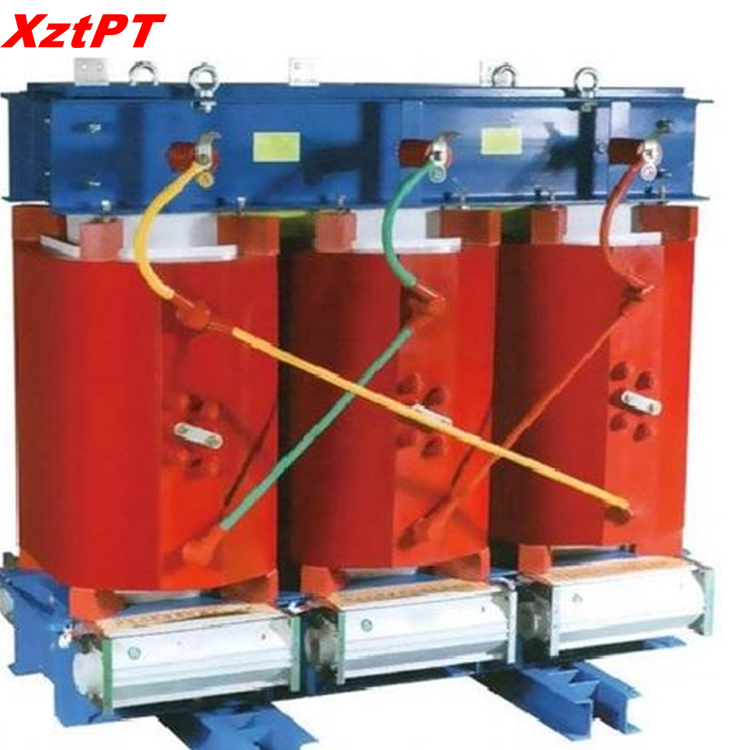

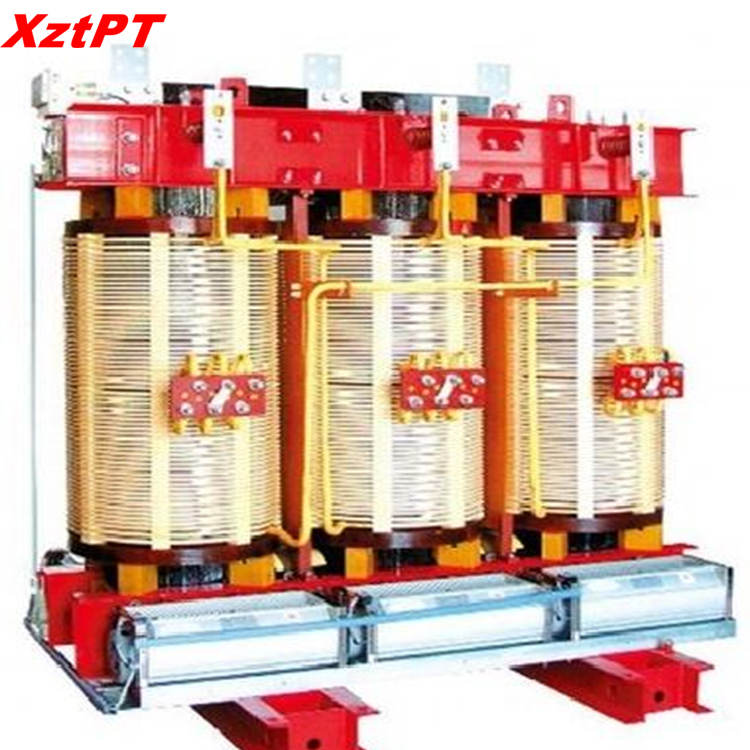

SH15-M-80 Amorphous Alloy Transformer

Dry Type Transformer

I. Product Description

This product is oil-filled and sealed. The principle is the same as the sealed power transformer. The basic elements of amorphous alloys are iron, nickel, cobalt, silicon, boron, carbon and other components. It is an isotropic soft magnetic material with low magnetization power and extremely thin thickness. Amorphous alloy materials are particularly sensitive to stress.

Product Details

II. Main Product Performance Parameters

Model	Rated Capacity (kVA)	Linkage group label	Voltage combination ( kV )			Load loss (W)	Dy load loss (W)	Yy load loss (W)	Short circuit impedance (%)
Model	Rated Capacity (kVA)	Linkage group label	High voltage	Tap range	Low voltage	Load loss (W)	Dy load loss (W)	Yy load loss (W)	Short circuit impedance (%)
SH15-M-30	30	Dynl1	10.5 10 6.3 6	±5% or ±2X2.5%	0.4	33	630	600	4
SH15-M-50	50					43	910	870
SH15-M-63	63					50	1090	1040
SH15-M-80	80					60	1310	1250
SH15-M-100	100					75	1580	1500
SH15-M-125	125					85	1890	1800
SH15-M-160	160					100	2310	2200
SH15-M-200	200					120	2730	2600
SH15-M-250	250					140	3200	3050
SH15-M-315	315					170	3830	3650
SH15-M-400	400					200	4520	4300
SH15-M-500	500					240	5410	5150
SH15-M-630	630					320	6200		4.5
SH15-M-800	800					380	7500
SH15-M-1000	1000					450	10300
SH15-M-1250	1250					530	12000
SH15-M-1600	1600					630	14500
SH15-M-2000	2000					720	18300		5
SH15-M-2500	2500					865	21200		5
