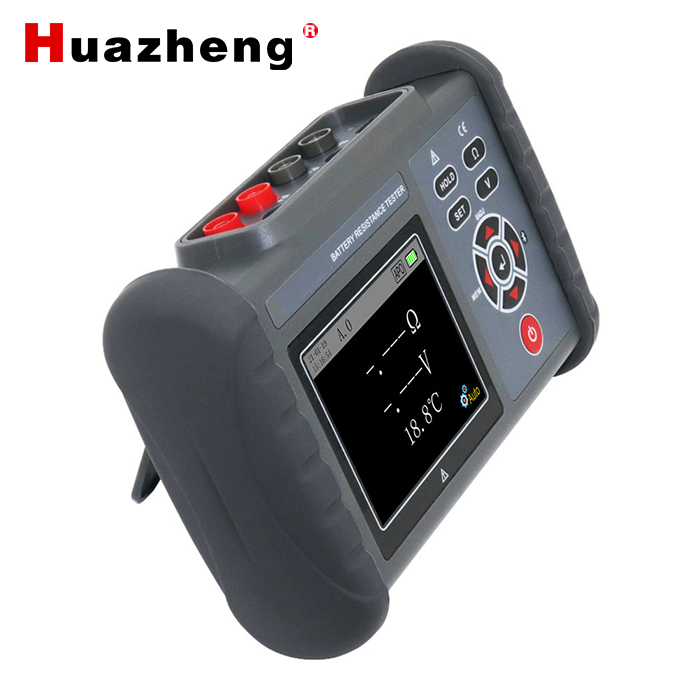

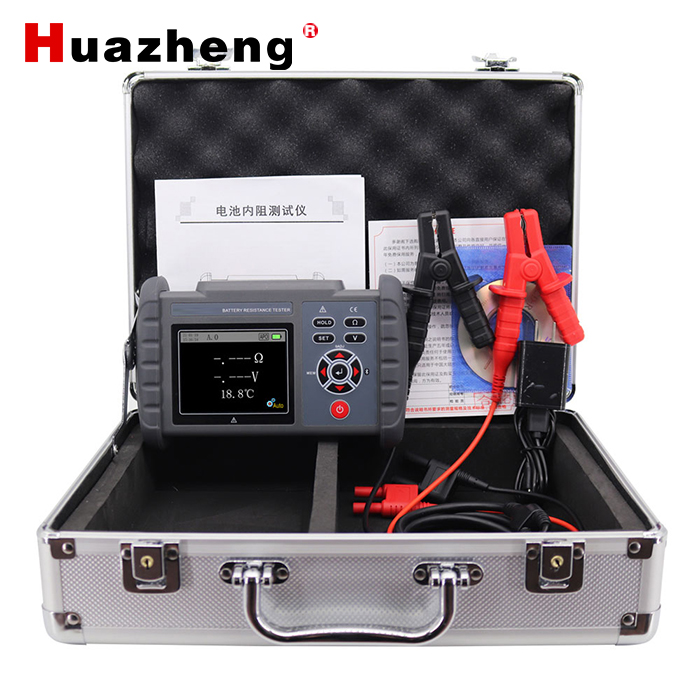

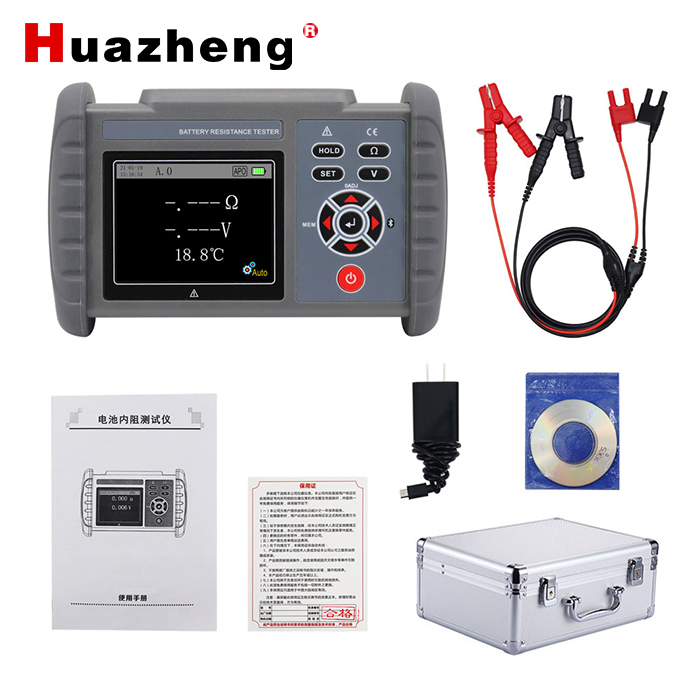

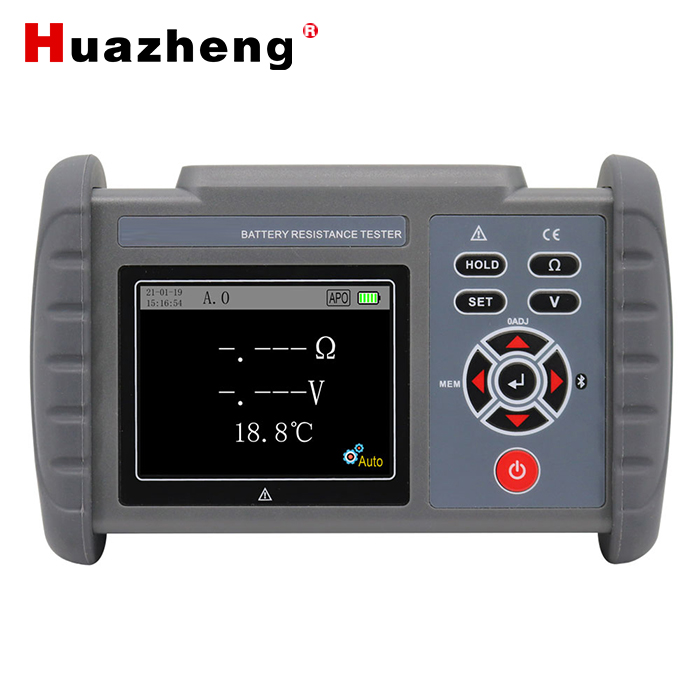

XZTZ8020 Battery Internal Resistance Tester
Product Details
Ⅰ. Characteristic

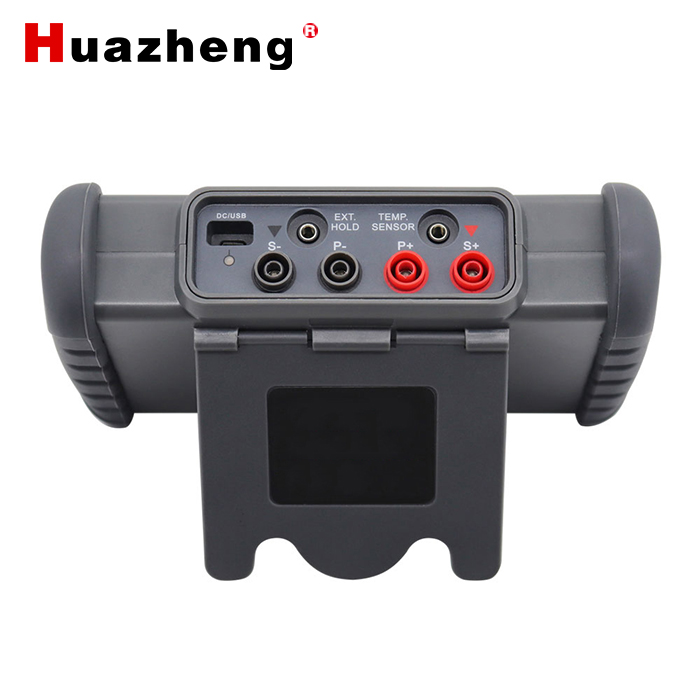

Universal rechargeable battery internal resistance tester for short: battery internal resistance tester, which is used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead-acid batteries and lithium batteries to judge the health status of the battery. Meter for capacitance ESR parameters (for reference only). This instrument uses the AC 4-terminal test method to measure the internal resistance of the battery, which can measure the correct measurement value without being affected by the contact resistance between the test wire, the terminal and the battery electrode. At the same time, it also has the functions of data storage, data access, alarm, automatic shutdown and so on. The whole machine is high-grade and beautiful, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability. It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance and other scenarios.
The universal rechargeable battery internal resistance tester is controlled by a microprocessor, and the internal 16-bit ADC can accurately detect the internal resistance, voltage and temperature of the battery. Its characteristics are to measure without stopping the UPS system, using AC low resistance measurement and noise reduction technology, and do not need to stop the normal operation of the equipment under test. The measurement is carried out in the running state, which greatly shortens the test time. At the same time, it has functions such as data storage, histogram display, data uploading to computers, mobile phones, tablets and other smart devices via Bluetooth connection for wireless measurement and data viewing.
Ⅱ. Range and Accuracy
Range | Maximum display | Highest resolution | Test accuracy |
0.000mΩ~3 Ω | 3.100 Ω | 1 uΩ | ±0.5 % |
Range | Maximum display | Highest resolution | Test accuracy |
0.000V~70 V | ±71.00 V | 1 mV | ±0.2 % |
Range | Maximum display | Resolution | Test accuracy |
-10.0℃~60.0℃ | 60.0℃ | 0.1℃ | ±1.0℃ |
Ⅲ. Technical Specification
Features | Battery internal resistance measurement, battery voltage measurement, temperature measurement |
Avoid noise frequencies | Yes, automatic frequency conversion range 920Hz~1080Hz |
Accuracy Guaranteed Temperature Humidity | 23℃±5℃, below 75%rh |
Power supply | DC 3.7V lithium battery |
Resistor Resolution | 1uΩ |
Voltage resolution | 1 mV |
Temperature resolution | 0.1℃ |
Measuring range
| Internal resistance measurement: 0.000mΩ~3.100 Ω (4 ranges) |
Voltage measurement: 0.000V~±71.00V (2 ranges) | |
Temperature measurement: -10.0°C~60.0°C (single range configuration) | |
Maximum input voltage | DC 70V (between + measurement terminal and - measurement terminal), no AC input |
Measurement method | Internal resistance measurement: 1KHz AC 4-terminal test method, open-circuit terminal voltage 3V max Measuring current: 2.0mA~200mA (different measuring currents in different ranges) Temperature measurement: NTC temperature sensor (10KΩ at 26°C) A/D conversion method: successive approximation type Display update frequency: 5 times/second |
Response time | 200ms |
Measure time | about 2 seconds |
LCD size | 70.1mm×52.6mm / 3.5 inches (320*240 resolution 16-bit true color screen) |
Meter size | Length, width and height: 190mm×121mm×51mm |
USB interface | With a USB interface, the stored data can be uploaded to the computer, saved and printed |
Bluetooth connection | Have |
Hold and store functions | There are manual hold and storage, automatic hold and storage |
Measurement judgment function | PASS, WARNING, FAIL judgment thresholds can be preset |
Battery voltage | 5-bar display of battery power, reminding to charge in time when the battery voltage is low |
Automatic shut-down | Power on without operation, automatically shut down after about 15 minutes (can be turned off in the settings) |
Power consumption | 300mA MIN / 500mA MAX |
Quality | Meter: 480g (including battery) |
Working temperature and humidity | -10℃～40℃; below 80%RH |
Storage temperature and humidity | -20℃～60℃; below 70%RH |
Insulation resistance | Above 20MΩ (500V between circuit and case) |
Pressure resistance | AC 3700V/RMS (between circuit and case) |
External magnetic field | <40A/m |
External electric field | <1V/m |
Suitable for safety regulations | IEC 61010 |
